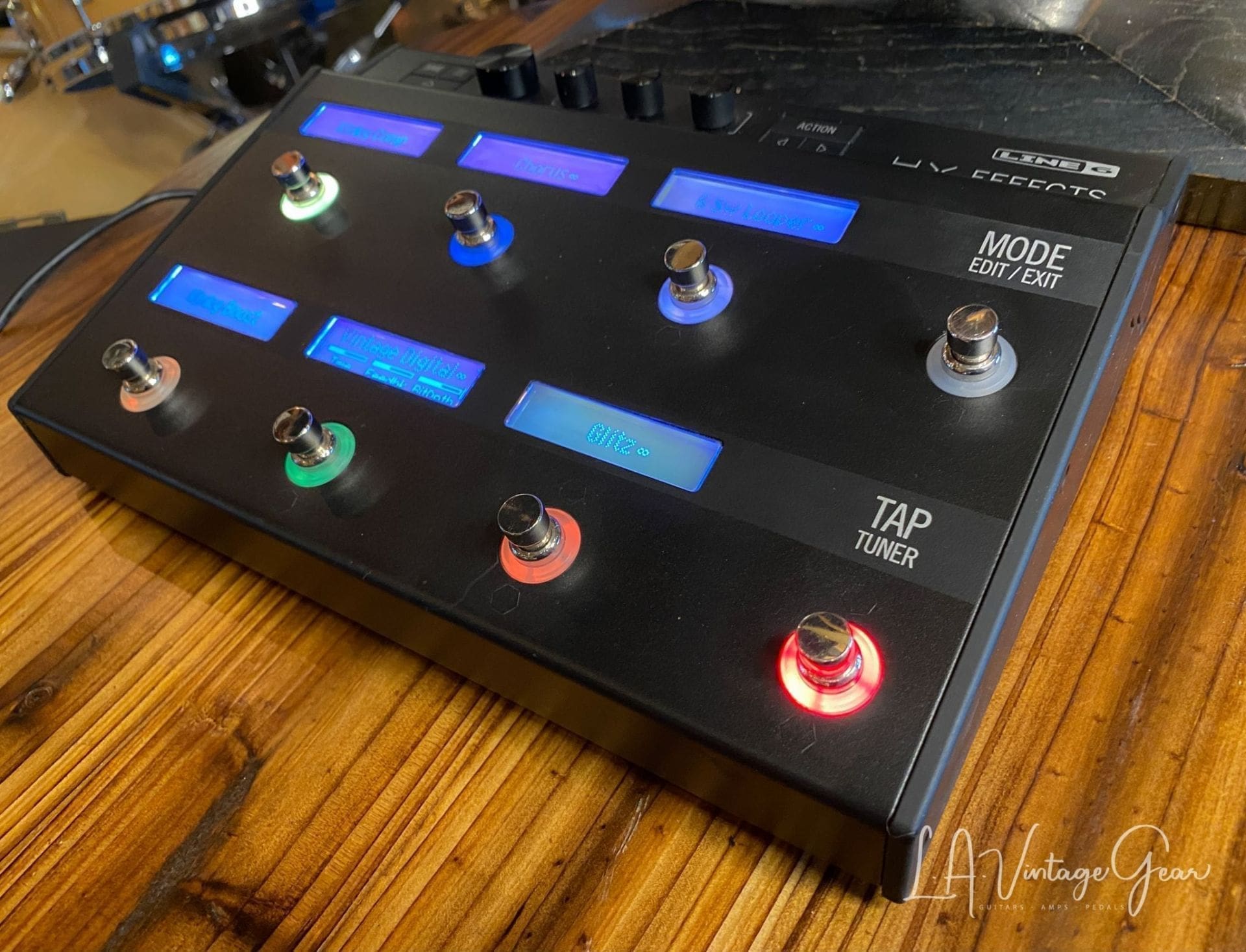

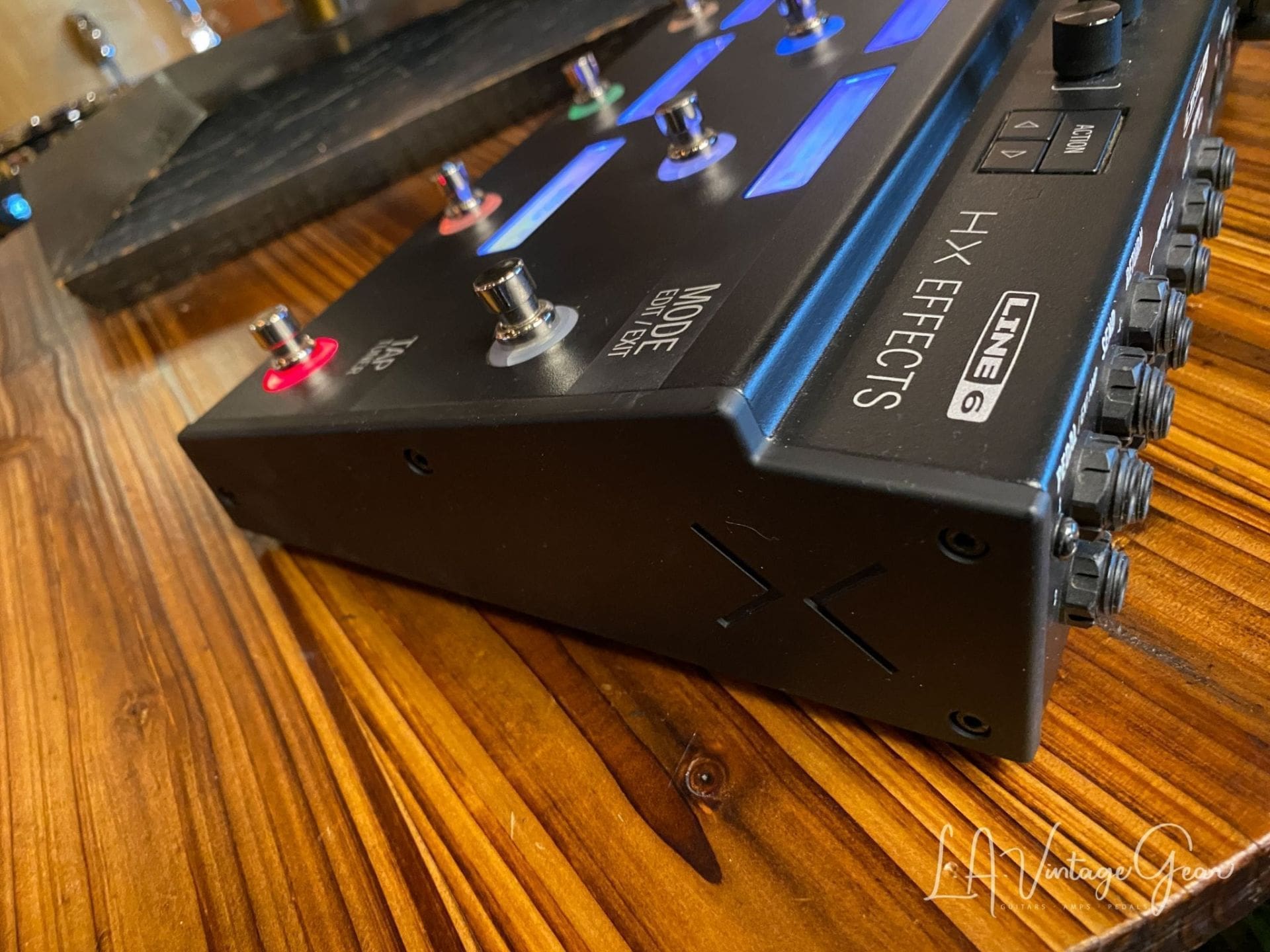

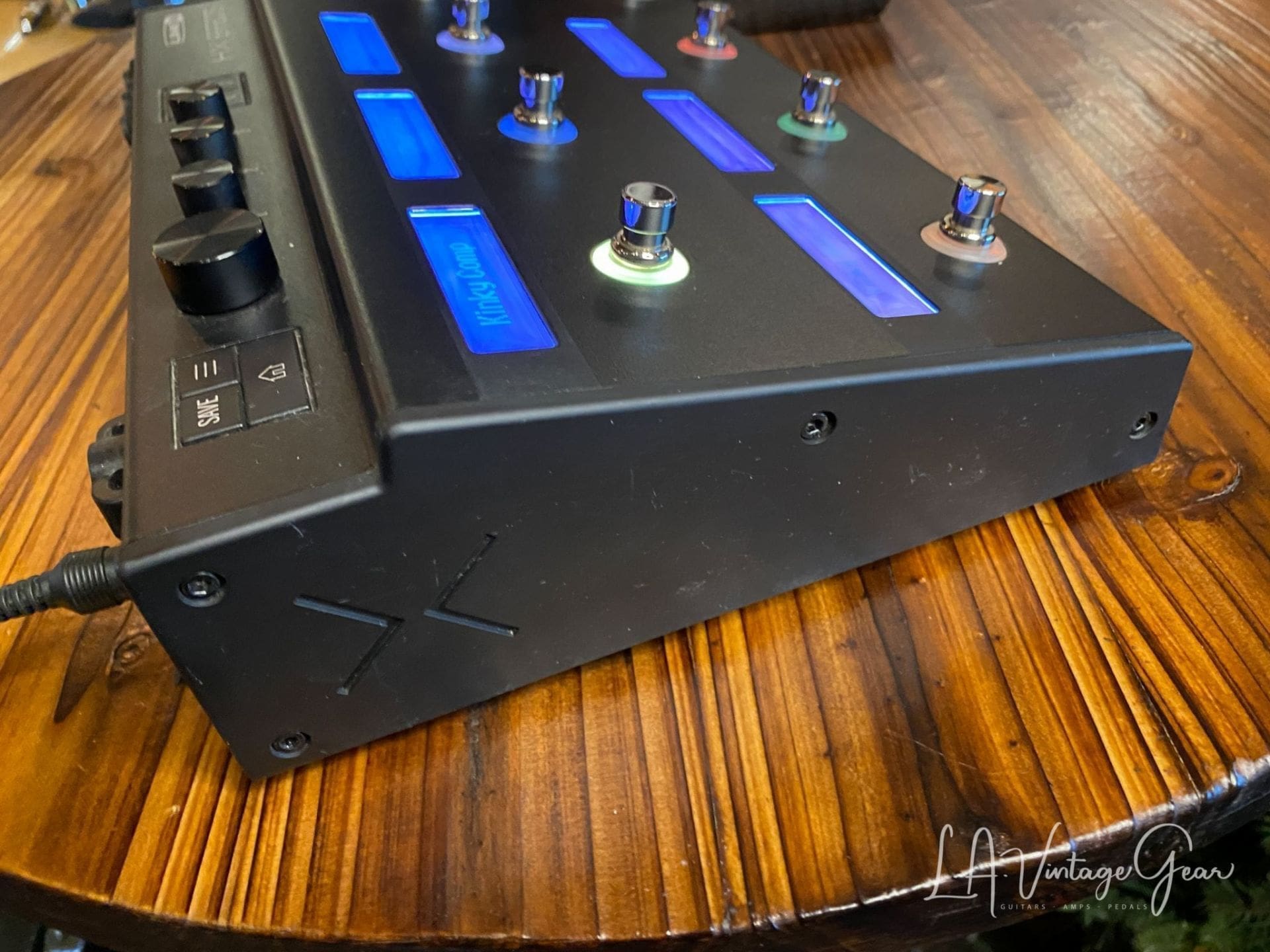

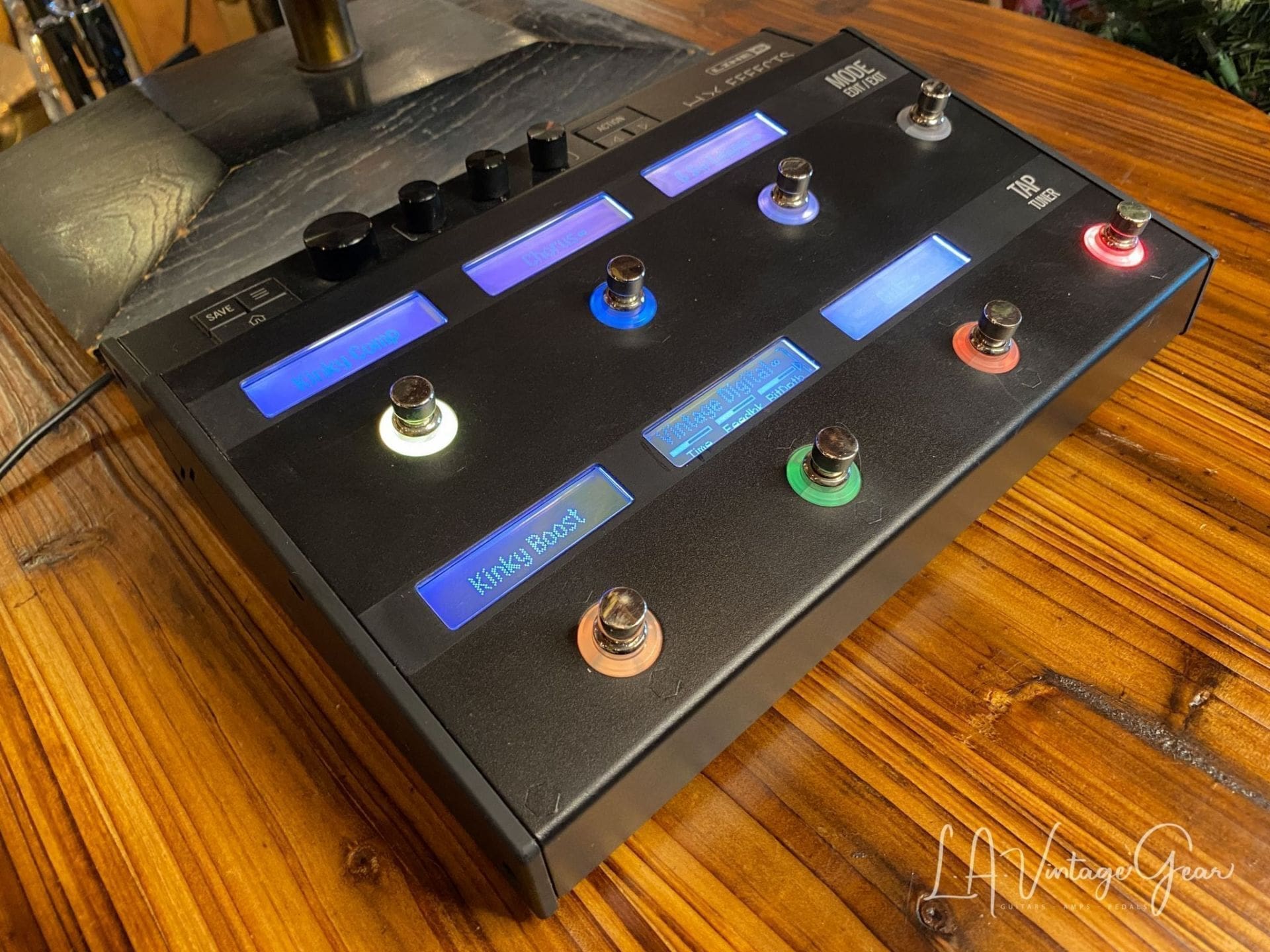

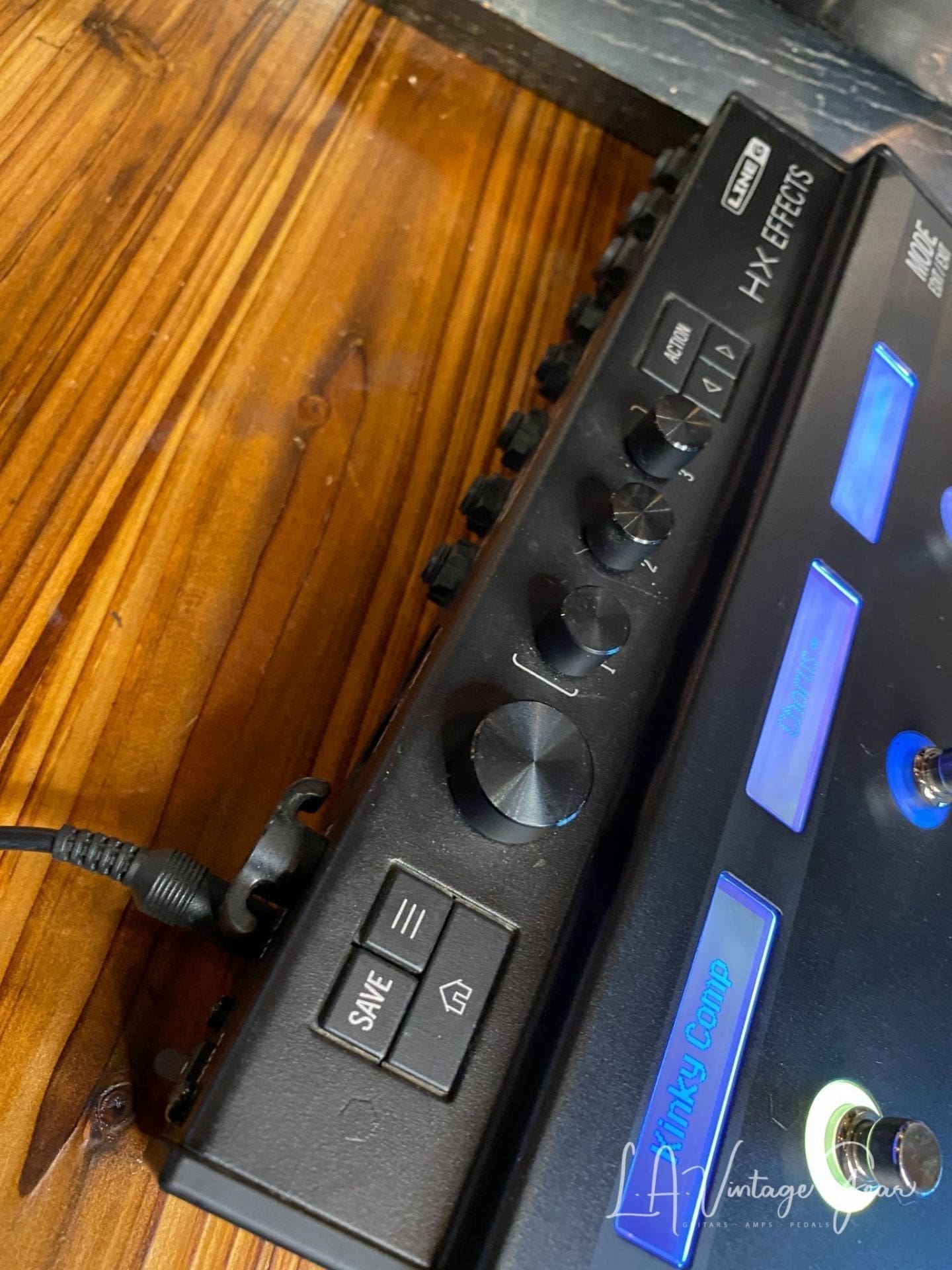

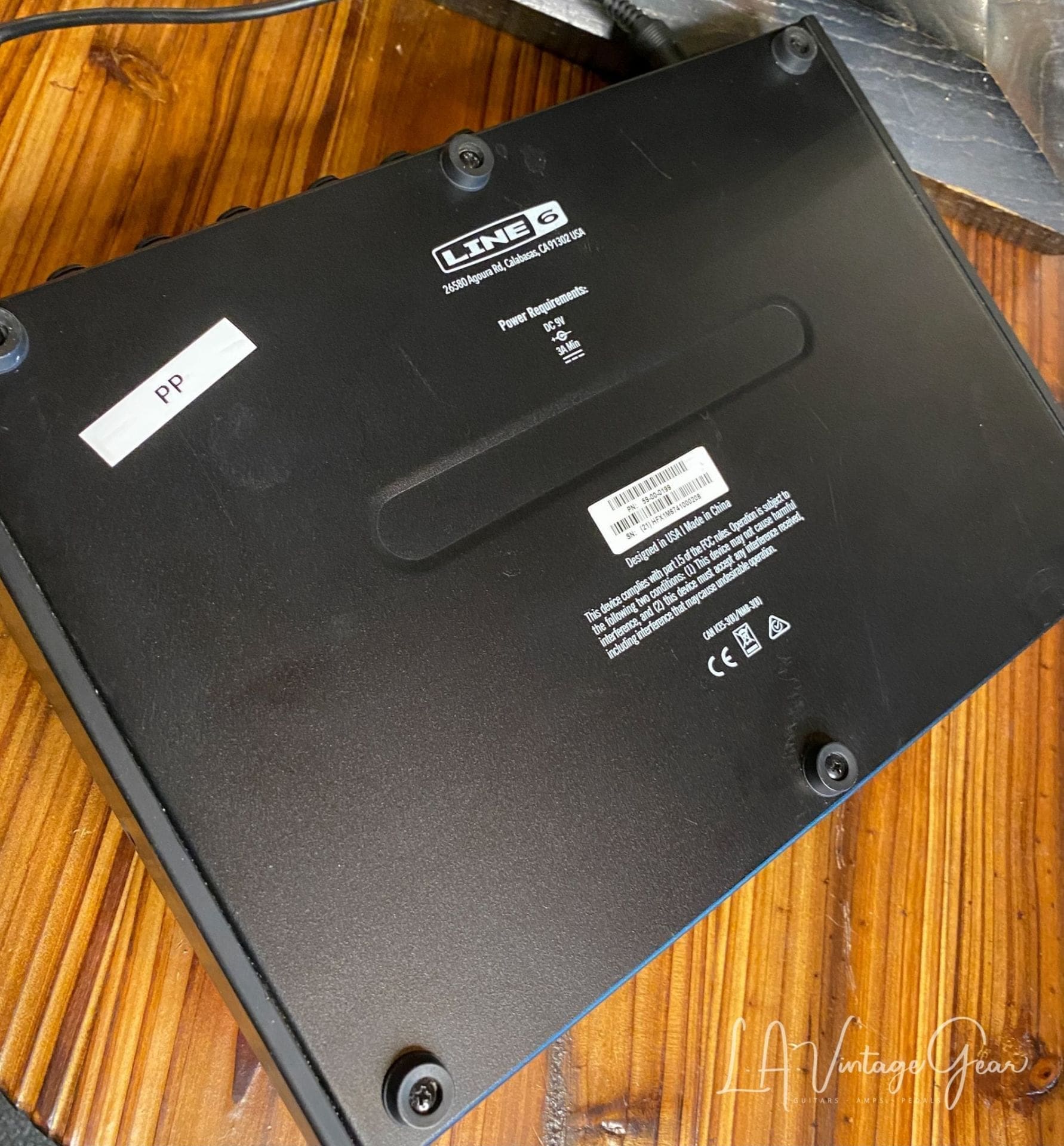

Line 6 HX Multi Effects Pedal

Great multi effects pedal with tons of routing options and all the same models as on the full Helix floor units, just without the amp and cab sims. Fully programmable, tons of routing options, it's a great unit and you could easily get away with only this on your pedalboard.

HX Effects features 100+ effects taken from the award-winning Helix hardware and software processors, all in a compact, pedalboard-friendly format, and up to nine effects can be run simultaneously. In addition, legacy effects from the acclaimed Line 6 M-Series and Stompbox Modeler pedals are also included. Effortlessly edit effects using the eight capacitive-sensing footswitches, six scribble strip LCDs, and color-coded LED rings. Simply touch a footswitch with your finger to instantly jump to any effect, quickly adjust a parameter, or assign controllers. HX Effects also offers a choice of true analog bypass or DSP bypass with trails, and an industry-leading 123dB of dynamic range delivers tremendous depth and ultra-low noise. Extensive routing and control options provide flexibility in the studio or on stage, and facilitate easy integration with traditional pedalboards and amps.

HX AUDIO ENGINE
HX Effects features the same HX audio engine as Helix processors, and leverages powerful DSP processing to run up to nine effects simultaneously. 123dB of dynamic range ensures exceptional depth, responsiveness, and ultra-low noise.

HX EFFECTS
HX Effects features more than 100 of the same effects featured in our Helix guitar processors, including distortions, delays, reverbs, modulations, pitch/synth/filters, compressors/limiters, EQs, wahs, and a six-switch looper. A Legacy library of effects from the Line 6 M13, M9, M5, DL4TM, MM4 TM, FM4 TM, DM4 TM, and Verbzilla pedals is also included, and users can even load
custom impulse responses (IRs) for stage/FOH routings and acoustic guitar body resonance.

BEHAVIORAL EFFECTS MODELING
HX Effects accurately recreates the behavior of even the most idiosyncratic vintage effects by modeling their individual components. For example, the Transtronic process emulates the unique behavior of multiple germanium and silicon components, making it possible to authentically recreate fuzz, distortion, and other pedals once considered too persnickety to convincingly model; and the Throbber is a “virtual lightbulb” that mimics the decidedly nonlinear behavior of the small incandescent bulb and four photocells inside the original Shin-ei Uni-Vibe pedals that are essential to their unique sound and vibe. HX Effects also lets you load HX Effects also lets you load third-party speaker cabinet impulse responses (IRs) for stage/FOH routings and acoustic guitar body resonance.

CAPACITIVE TOUCH FOOTSWITCHES

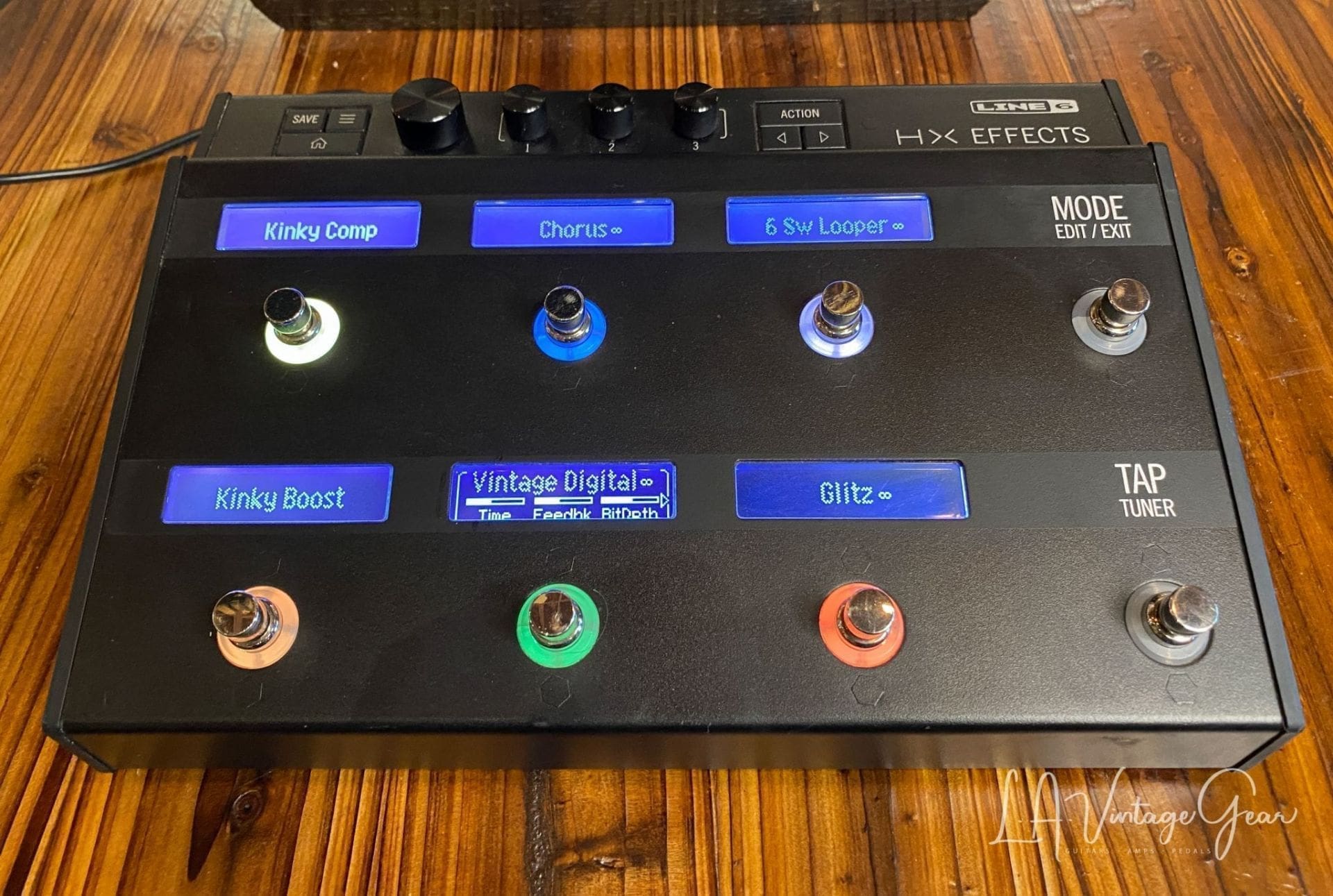

HX Effects is equipped with eight capacitive-sensing footswitches with color-coded LED rings, and six LED scribble strips that facilitate fast and intuitive effects selection and editing. Simply touch a footswitch with your finger to instantly jump to any effect, quickly adjust a parameter, or assign controllers. Touch two switches to swap them. Touch-hold a switch to display parameters across the LCDs and see everything at once.

TRUE STEREO THROUGHPUT
True stereo throughput maintains the integrity of stereo signals from inputs to outputs, while selectable true analog bypass switching ensures nothing gets between you and your tone.

EXTENSIVE ROUTING AND I/O

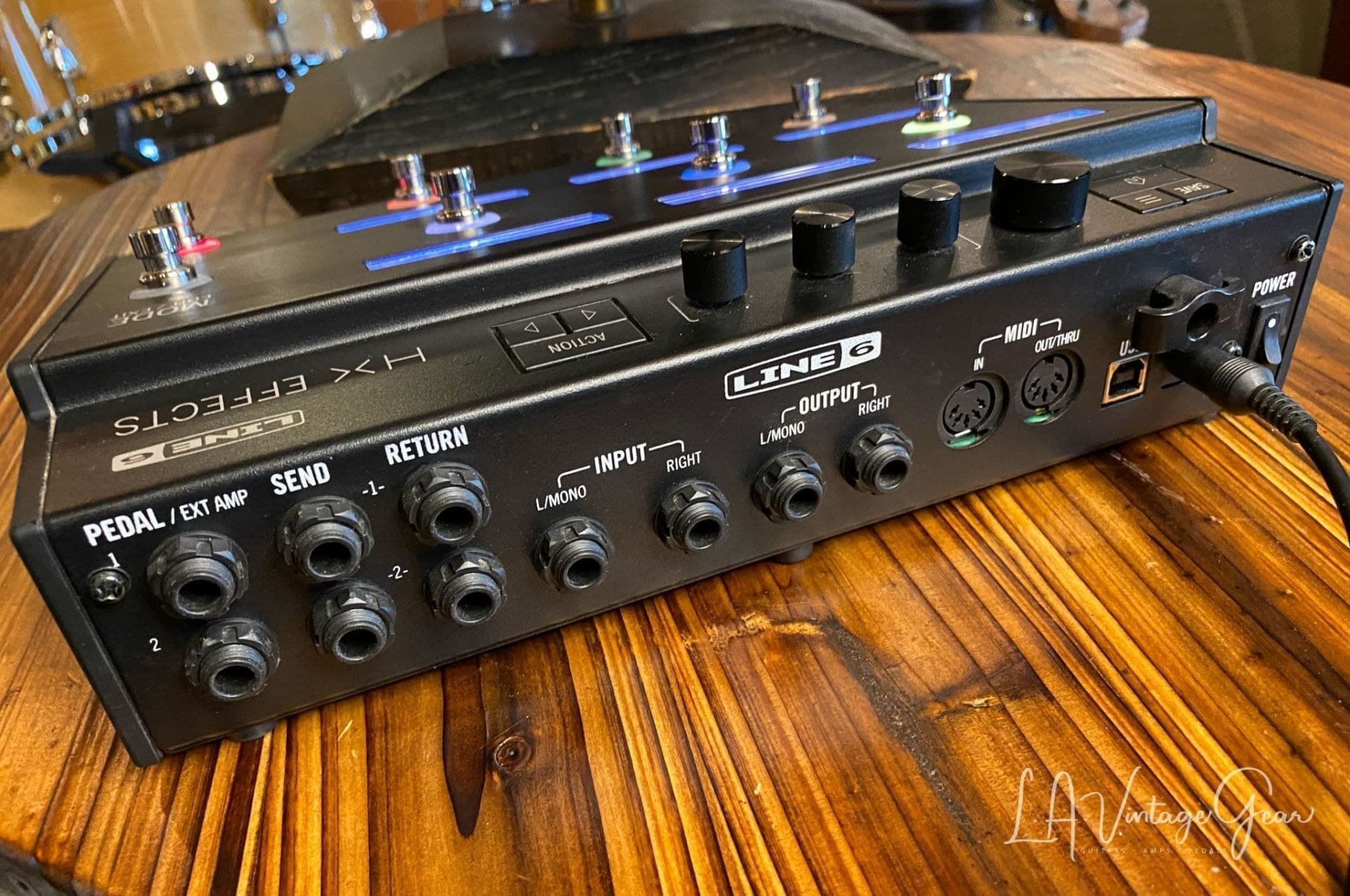

HX Effects is easily integrated into existing pedalboard and studio rigs thanks to robust routing and control options, including parallel stereo signal paths, two assignable effects loops (stereo linkable), two expression pedal inputs, and up to four amp switching outputs. A switchable line-level input enables keyboardists, DJs, and producers to connect electronic instruments or use HX Effects as an “outboard” effects processor in the studio.

COMMAND CENTER FOR YOUR RIG
Like Helix multi-effects processors, HX Effects can act as a command center for an entire amp and pedal rig—enabling amp switching, control of other MIDI-equipped pedals, and more. A switchable line-level input enables keyboardists, DJs, and producers to connect electronic instruments or use HX Effects as an “outboard” effects processor in the studio. Real-time MIDI control enables you to send MIDI command and controller messages to other devices.
